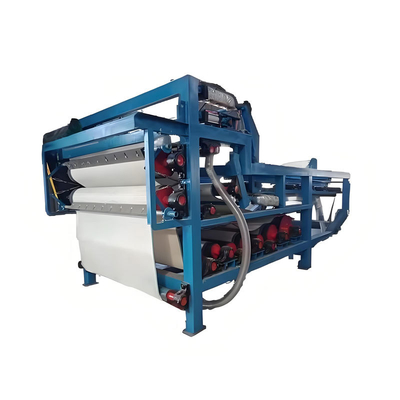

High-Quality Belt Filter Press for Large-Scale Sewage Sludge Dewatering

Large Image : High-Quality Belt Filter Press for Large-Scale Sewage Sludge Dewatering

Product Details:

Place of Origin:	Hebei, China
Brand Name:	HUAYU

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Pump, Motor, PLC, Bearing	Warranty:	1 Year
Productivity:	Different As Each Model	Weight (kg):	1200
Processing Type:	Reverse Osmosis, Desalination	Power:	10KW, 5KW, 15KW, 20KW, 30KW
Voltage:	220V, 380V, 110V

Product Description

What is a Belt Filter Press?

A Belt Filter Press is a sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry, which is sandwiched between two (2) tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls. The machine can actually be divided into three (3) zones: the gravity zone, where free draining water is drained by gravity through a porous belt; the wedge zone, where the solids are prepared for pressure application; and the pressure zone, where medium, then high pressure is applied to the conditioned solids.

Working Principle

Working principle

Its operating principle is to condition the feed sludge with a polyelectrolyte and drain the flocculated sludge over an endless, horizontal porous filter belt. The thickened sludge is then sandwiched by a second filter belt before further dewatering by a series of decreasing diameter rollers. Final moisture removal is achieved by shear rollers arranged to give minimum 180 degree belt wrap in order to optimize dewateri

Model		HYBFP1000	HYBFP1500	HYBFP2000	Remark
Belt Width (mm)		1000	1500	2000	-----
Treating Capacity (m³/h) Inlet Consistency (S.S1-5%)		12.5-15	20-25	30-35	Depends on Sludge Category
Dried Sludge (kg/h)		100-188	160-300	240-450	Depends on Sludge Category
Mud Cake Water Content's Rate (%)		75-85	75-85	75-85	Depends on Sludge Category
Power Consumption (kw)	Driving Motor (frequency control)	0.37	0.75	0.75	-----
	Disposal Agitator Motor	0.37	0.55	0.75	-----
	Drum thickener	0.75	0.75	1.1	-----
Lower Collecting Tray for Pressed Filtrate		Yes	Yes	No	-----
External Dimensions (mm)	L	4050	4680	5150	Please ask for actual installation size picture before purchasing
	W	1770	2100	2750
	H	2250	2980	3190
Dase Dimension L1*W1(mm)		2100*1300	2440*1720	2715*2420	-----
Dase Dimension L2*W2 (mm)		640*800	740*800	950*1100	-----
Reference Weight (kg)		2000	2850	3500	-----
Customization Accepted

Product Application

Production Workshop

Packaging & Shipping

Company Information

Hebei Huayu Environmental Engineering Co., Ltd. is a high-tech enterprise that integrates scientific research, design, production, and trade. The company is located in Shijiazhuang, the provincial capital of Hebei Province. Its main business is the research and development, design, production, and sales of sewage treatment equipment, low-temperature pressure vessels, and outdoor LED lighting fixtures. As a technology-based, modern, and market-oriented environmental protection enterprise, the company has a professional, efficient, and experienced design and development, production and sales, and after-sales service team, which can provide customers with comprehensive services such as preliminary design, on-demand customization, installation guidance, and after-sales support.

Certifications

Q:What can you buy from us?
A:We provide plate and frame filter presses, belt filter presses, filter press accessories, and more.

Q:Why do you want to purchase from us instead of other suppliers?
A:We have over 10 years of experience in filtration equipment and water treatment projects. Provide customized solutions for customers.Provide OEM and ODM.

Q: Can you provide corresponding machine installation training and support?
A: Of course, we provide installation guidance and training services to ensure that your staff can correctly and safely install and operate pressure filter. In addition, we also provide remote support and regular maintenance services to ensure the long-term stable operation of the machine.

Q: Can you provide timely assistance if there is a malfunction or maintenance needed during the operation of the machine?
A: If there is a malfunction in the operation of the machine, please contact our customer service promptly. We have a dedicated after-sales service team that can provide you with technical support and repair services.

Q: How long is the warranty period for your machine?
A: Our machine has a warranty period of one year.
