Best Hydraulic Filter Press Tailing Plate Press Filter Machine for Gravel Marble Granite Wastewater

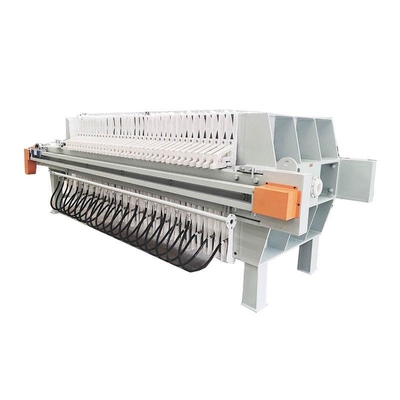

Large Image : Best Hydraulic Filter Press Tailing Plate Press Filter Machine for Gravel Marble Granite Wastewater

Product Details:

Place of Origin:	Hebei, China
Brand Name:	HUAYU

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Pump, Motor, PLC	Warranty:	1 Year
Productivity:	2000L/Hour	Weight (kg):	8800
Processing Type:	Filtration	Dimension(LWH):	6060X1620X2050
Power:	3KW	Voltage:	220V, 380V, 110V
Automatic Grade:	Automatic	Color:	Orange(can Be Customized)
Filter Area:	120m²	After-sales Service:	Online Support

Filter press is suitable for almost all types of slurry, such as: ceramics industry, stone industry, glass industry,mining & minerals industry, coal washing, sand washing, pull&paper industry, food industry, chemical & pharmacy industry,electroplating industry, textile& dyeing, leather industry, municipal slurry etc.

Feature:
lower residual moisture, High capture rate, low energy requirement, Reliable, automatic operation, Solid and robust design for demanding operating conditions, Long service life, High operating availability, Free access to plate pack, Special design for aggressive media, Customer-oriented process solution thanks to modular design.

Working Principle

Working principle of Filter Press:

1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Product Parameters

Filter area (m²)	Plate size (mm)	Chanbers No.	Totd volume (L)	Working pressure (Mpa)	Press pressure (Mpa)	External Dimensions(LWH)(mm)	Machine weight(KG)
120	1250X1250	46	2400	≤0.8	≤1.2	6060X1620X2050	8900
140	1250X1250	54	2800	≤0.8	≤1.2	6660X1620X2050	9400
160	1250X1250	62	3200	≤0.8	≤1.2	7260X1620X2050	9900
180	1250X1250	70	3600	≤0.8	≤1.2	7960X1620X2050	10400
200	1250X1250	76	4000	≤0.8	≤1.2	8560X1620X2050	10900

Product Application

Production Workshop

Packaging & Shipping

Company Profile

Hebei Huayu Environmental Engineering Co., Ltd. is a high-tech enterprise that integrates scientific research, design, production, and trade. The company is located in Shijiazhuang, the provincial capital of Hebei Province. Its main business is the research and development, design, production, and sales of sewage treatment equipment, low-temperature pressure vessels, and outdoor LED lighting fixtures. As a technology-based, modern, and market-oriented environmental protection enterprise, the company has a professional, efficient, and experienced design and development, production and sales, and after-sales service team, which can provide customers with comprehensive services such as preliminary design, on-demand customization, installation guidance, and after-sales support.

Certifications

FAQ

Q:What can you buy from us?
A:We provide plate and frame filter presses, belt filter presses, filter press accessories, and more.

Q:Why do you want to purchase from us instead of other suppliers?
A:We have over 10 years of experience in filtration equipment and water treatment projects. Provide customized solutions for customers.Provide OEM and ODM.

Q: Can you provide corresponding machine installation training and support?
A: Of course, we provide installation guidance and training services to ensure that your staff can correctly and safely install and operate pressure filter. In addition, we also provide remote support and regular maintenance services to ensure the long-term stable operation of the machine.

Q: Can you provide timely assistance if there is a malfunction or maintenance needed during the operation of the machine?
A: If there is a malfunction in the operation of the machine, please contact our customer service promptly. We have a dedicated after-sales service team that can provide you with technical support and repair services.

Q: How long is the warranty period for your machine?
A: Our machine has a warranty period of one year.
