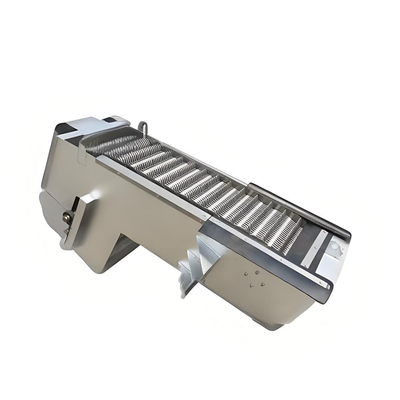

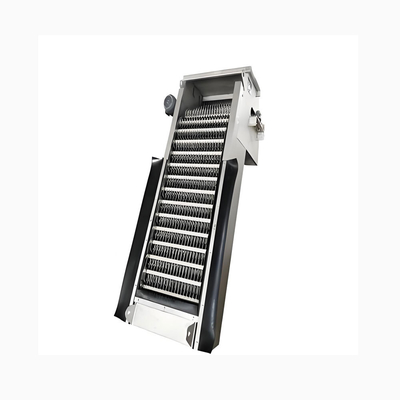

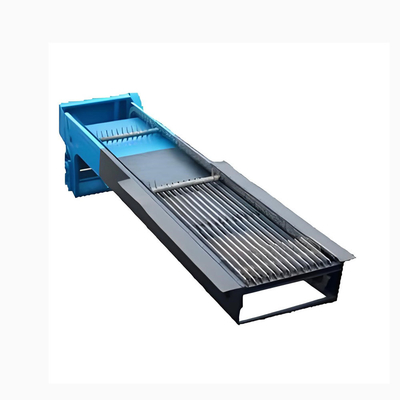

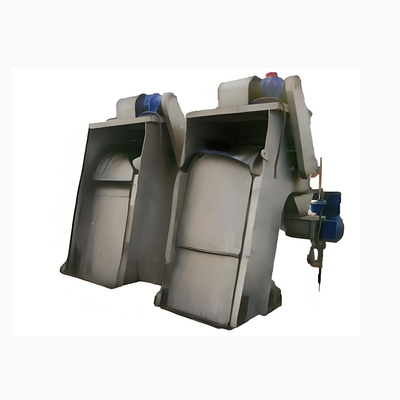

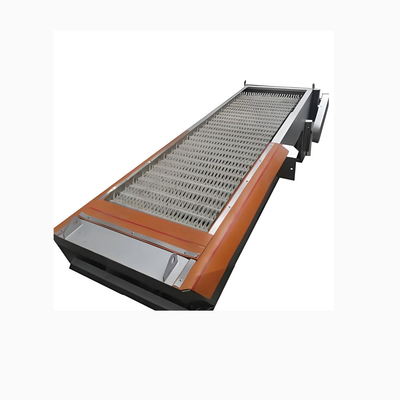

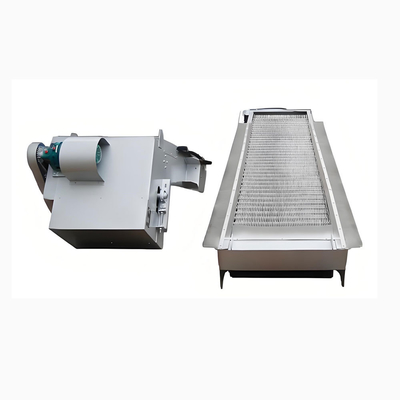

Rotary Mechanical Grille for Waste Treatment Core Gear Rotary Mechanical Grille Motor Bearing Rotary Machinery Grille Product

Large Image : Rotary Mechanical Grille for Waste Treatment Core Gear Rotary Mechanical Grille Motor Bearing Rotary Machinery Grille Product

Product Details:

Place of Origin:	Hebei, China
Brand Name:	HUAYU
Model Number:	HUAYU

Contact Now

Detailed Product Description

Type:	Softening	Warranty:	1 Year
Material:	Carbon Steel / FRP	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, Gear, Bearing, PLC, Engine
Weight (kg):	100	Power:	2 Kw
Voltage:	220V, 380V, 110V	Productivity:	200L/Hour
Dimension(LWH):	150 66 56

Product Description

Product Description

Mechanical grille decontamination machine, also known as circulating tooth rake grille decontamination or solid-liquid decontamination and solid-liquid batch machine, is a first-class water filter that can continuously and automatically intercept and remove various shapes of debris in the fluid. The special treatment device is suitable for urban sewage treatment, tap water industry, irrigation, and can also be used as front-end treatment equipment in the wastewater treatment process of textile, food processing, paper, leather, leather and other industries, and is one of the most widely used equipment .

Working principle

Working Theory

This unit adopts rotary type, several plow-shaped rake will be installed on the shaft,forming rake chains. According to the water flow volume, the bar screen will have different spaces or gaps installed on the front of the pump station or water treatment system. When the drive mechanism move from bottom to top with rake chains. The debris will be taken out from the rake chains,while the liquid will flow through screen gap. When the unit rotates into the top, the rake chain will revert its running direction, moving from top to bottom. The matters will fall off from the rake chains. When the rake rotates into the bottom from the opposite side. Then it will re-start for continuous running.

Product Parameters
